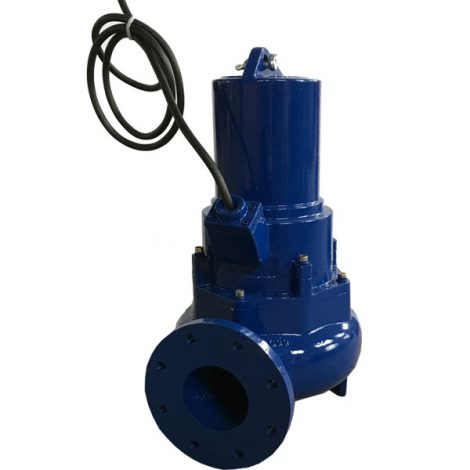

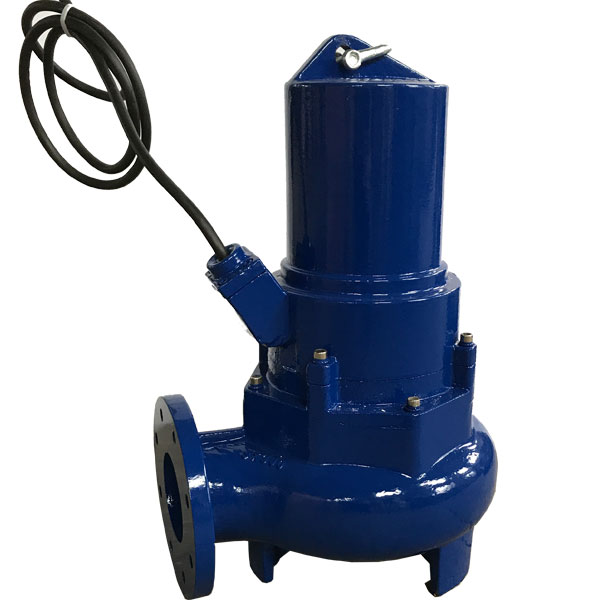

AV Series Vortex Impeller Pumps

AV series vortex impeller pumps are suitable for municipal & industrial sewage water, its feature is to have the strong capacity of anti block and intertwine.

Product range of use

Sewage water with fibrous mater

Municipal sewage water

Industrial sewage water

Domestic sewage water

AV series vortex impeller pumps

AV Series Vortex Impeller Pumps

TYPE 2 4 6 8 10 11 12 13 15 16 16.5 H(m)
AV4.0-2 12 9.5 7.2 5 4 3 1.5 flow(m3/h)
AV5.5-2 11.5 9 6.9 6 4.7 3.5 1
AV7.5-2 13.6 11.2 8.8 7.8 6.6 5.5 3 1.6
AV14-4 60 35 21 6
AV22-4 75 60 41 15
AV30-4 85 70 52 30 10
AV40-4 113 100 84 64 50 36 10
AV55-4 115 90 80 67 56 30 20
AV75-4 130 108 95 84 75 50 35 20



TYPE Voltage[50HZ] Power Current Speed Discharge Solid size Weight
(V) (kw) (A) (rpm) (mm) (mm) (kg)
AV4.0-2 220 0.4 3.5 2900 50 30 20
AV5.5-2 220-380 0.55 5/1.5 2900 50 30 29
AV7.5-2 220-380 0.75 5.8/1.9 2900 50 30 29
AV14-4 380 1.4 4.3 1470 80 65 33
AV22-4 380 2.2 5.8 1470 100 80 45
AV30-4 380 3 6.4 1470 100 80 45
AV40-4 380 4 9 1470 100 80 75
AV55-4 380 5.5 13 1470 100 80 150
AV75-4 380 7.5 17 1470 100 80 150
