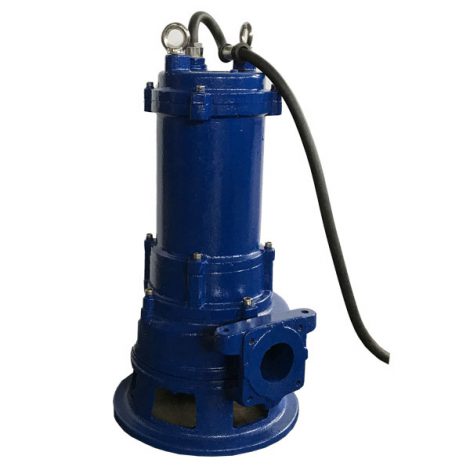

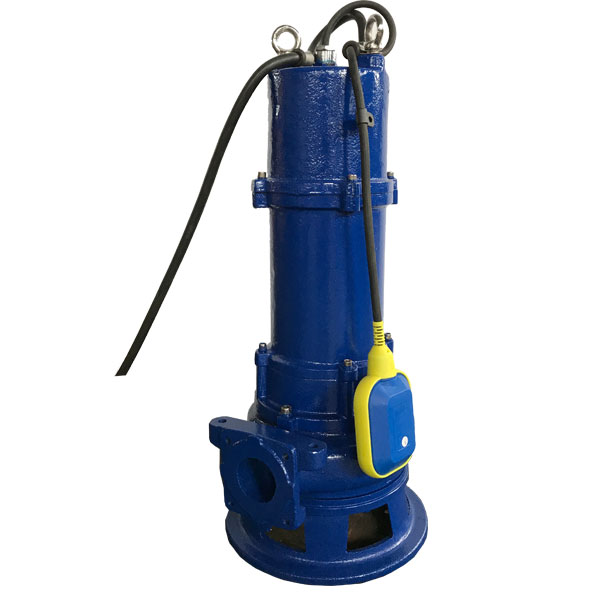

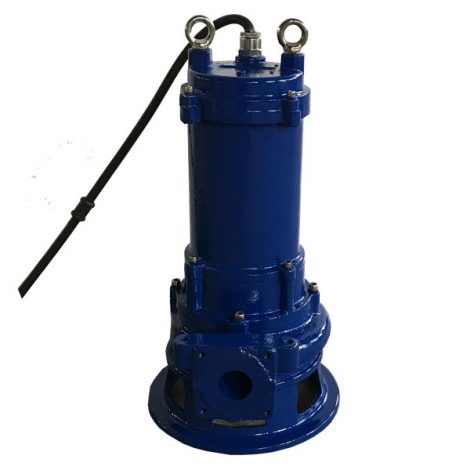

CP Series Submersible Sewage Pump

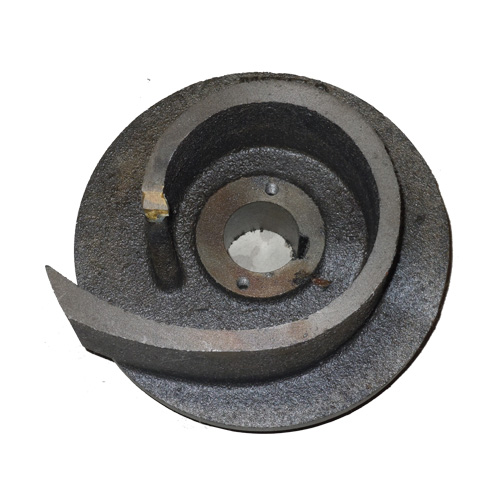

Other Names: Semi-Open Single&Double Impeller (CP)

CP series submersible sewage pump are designed for economical and reliable pumping of sewage water from commercial, communal and industrial sources.

They are suitable for clear and waste water containing solid and fibrous material.

Used in conjunction with the automatic coupling system the below ground level wet installation is a particularly economical solution which also does not damage the environment

The pump are also suitable for quick portable applications

cp submersible sewage pump

Cp Submersible Sewage Pump

Item .  Model  Capacity  Head  Power Discharge  Phase  Weight  Max solids Passed
No. (m3/h) (m) (Kw) (mm) (kg ) (mm)
1 CP(S)75-2H(A) 10 8 0.75 50 1/3 33 25
2 CPS100-2H(A) 10 9 1 1
3 CP100-2H(A) 10 13 1 3
4 CP(S)100 -2M (A) 17 6 1 80 3 33 40
5 CPS150-2H(A) 10 15 1.5 50 1 35 25
6 CP150-2H(A) 10 18 1.5 3 35
7 CP(S)150 -2M (A) 20 9 1.5 80 1/3 35 40
8 CP220-2H(A) 15 20 2.2 3 45
9 CP220 -2M (A) 40 10
10 CP220-4M(A) 60 5 2.2 100 78 50
11 CP300-2H(A) 20 22 3 80 45 40
12 CP300 -2M (A) 40 12
13 CP300 -4M (A) 80 5 100 80 50
14 CP400-2H(A) 20 25 4 80 85 40
15 CP400 -2M (A) 40 15
16 CP400 -4M (A) 100 6 100 120 50
17 CP400 -6M 250 2.5 150 130 70
18 CP550-2H 25 28 5.5 80 120 40
19 CP550 -2M 30 24 100 50
20 CP550-2S 65 15
21 CP550-4S 100 8 150 130 70
22 CP750-2H 45 29 7.5 80 130 40
23 CP750 -2M 70 20 100 50
24 CP750-2S 80 15
25 CP750-4S 150 10 150 140 70
26 CP1100-2H 45 33 11 80 200 40
27 CP1100 -2M 90 20 100 220 50
28 CP1100 -4M 150 12 150 280 70
29 CP1100-4S 400 5 200 320 100
30 CP1500-2H 70 32 15 80 200 40
31 CP1500 -2M 150 17 100 220 50
32 CP1500 -4M 250 13 150 280 70
33 CP1500-4S 550 6 200 320 100
34 CP1500-8M 900 3.5 300 500 125
35 CP1850-4H-100 80 34 18.5 100 450 50
36 CP1850-4M-100 100 30
37 CP1850-4H-150 150 18 150 70
38 CP1850-4M-150 300 11
39 CP1850-4M-200 400 10 200 100
40 CP2200-4H-100 80 38 22 100 500 50
41 CP2200-4M-100 100 35
42 CP2200-4H-150 150 22 150 70
43 CP2200-4M-150 250 17
44 CP2200-4M-200 400 13 200 100
