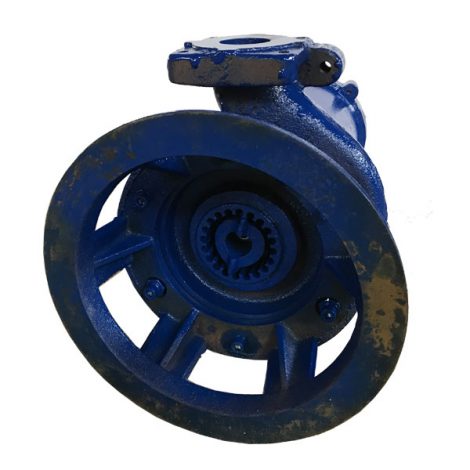

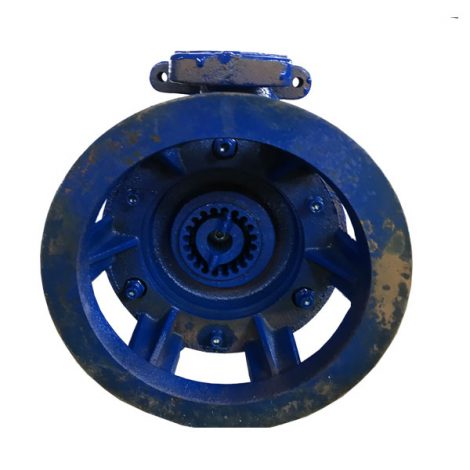

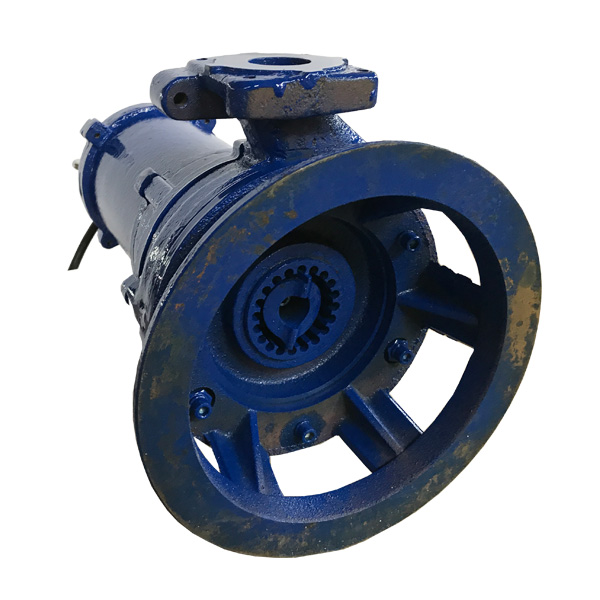

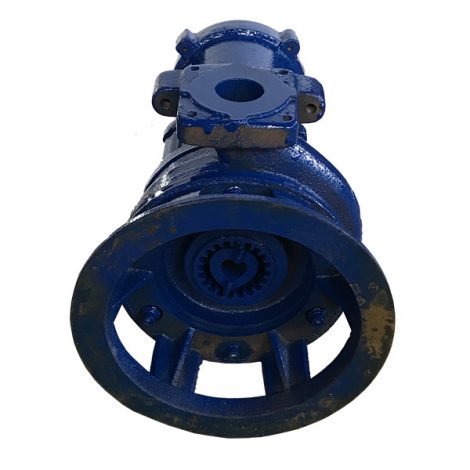

MPE Series Submersible Grinder Pump

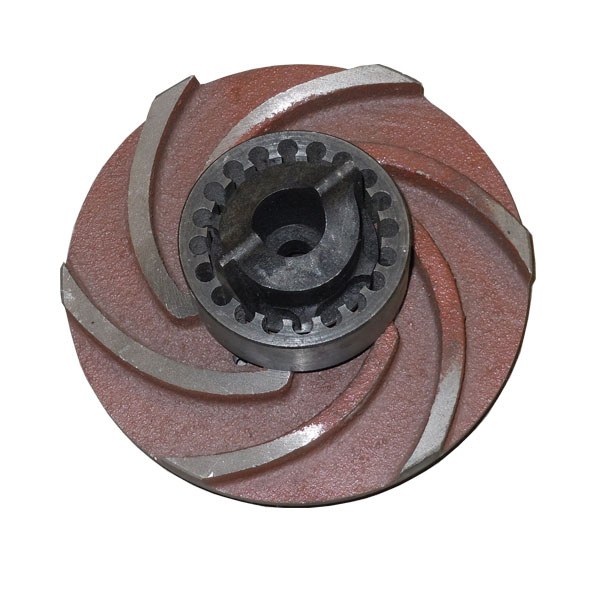

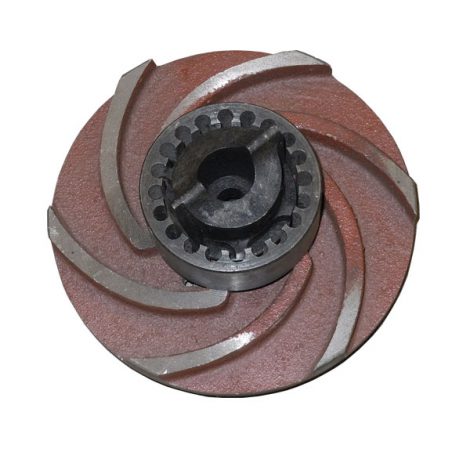

Other Names: Grinder Impeller

MPE series submersible grinder pump has reliable performance, superior quality and extensive applicability. The products of MPE series adopt several specific technologies, it has the cutter device which is equipped on the pump inlet, its function is that fibrous admixtures such as cotton yarn weeds, etc. witch can be cut into pieces and passed smoothly. As a tool of pumping domestic waste water and factory’s high contaminated waste water, and they are extensively used in mine construction, municipal engineering, hospital, hotel etc.

MPE Series Submersible Grinder Pump

MPE Series Submersible Grinder Pump

No. Model Capacity
(m3/h)
Head
(m)
Power
(Kw)
Outlet
(mm)
Phase Weight
(kg )


Pedestal

1 MP75-2 (A) 6 12 0.75 32 3 30 50GAK
MPS75-2(A) 1
2 MP100-2 (A) 10 15 1 3 32
MPS100-2 (A) 1
3 MP150-2 (A) 10 18 1.5 3 33
MPS150-2(A) 1
4 MP220 -2H (A) 9 25 2.2 3 52
5 MP220 -2M (A) 14 15
6 MP300 -2H (A) 9 27 3
7 MP300 -2M (A) 20 16
8 MP400-2H(A) 10 38 4 50 75 50GAKII
9 MP400 -2M (A) 24 25
10 MP550-2H 27 25 5.5 50 150 80GAKII
11 MP550-2M 45 20
12 MP750-2H 30 30 7.5 50 165
13 MP750-2M 45 23
