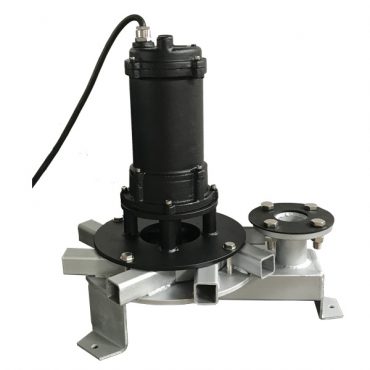

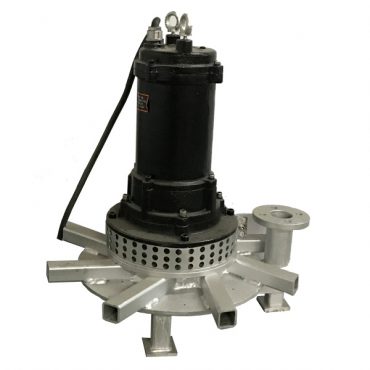

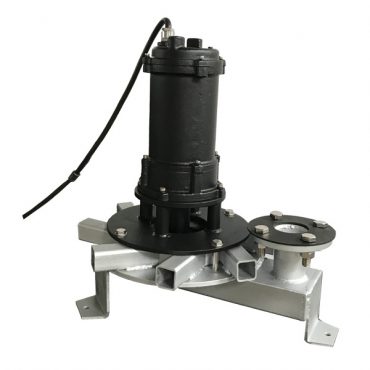

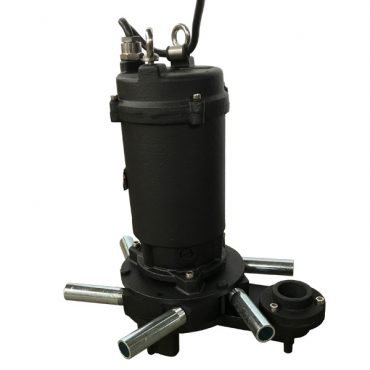

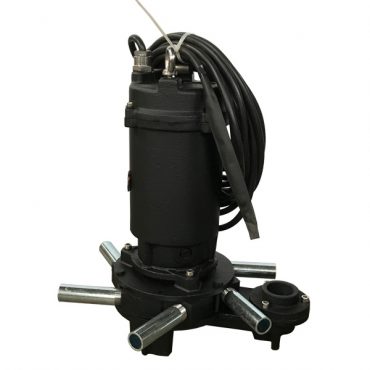

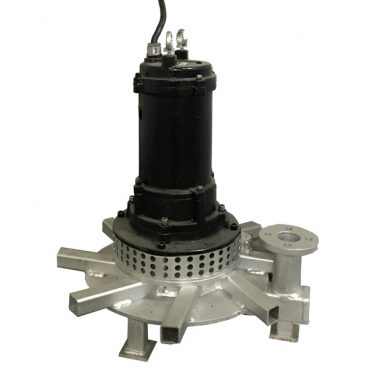

QXBL Centrifugal/QSB Jet Submerged Aerator

Other Names: Submersible Centrifugal Aerator

QXBL centrifugal/QSB jet submerged aerator is used for the aerating ditch and sand removed ditch in the wastewater treatment plant, and oxygenating and mixing liquid, and had biochemical treatment or aerated the oxidation ditch. The amount of entering air is 10-320m3/h, the ability of oxygenation is 0.37-24kgO2/h, the power of motor is 0.75-22kw.

QXBL centrifugal/QSB jet submerged aerator

QXBL centrifugal/QSB jet submerged aerator

TYPE QXBL0.75 QXBL1.5 QXBL2.2 QXBL3 QXBL4 QXBL5.5 QXBL7.5 QXBL11 QXBL15 QXBL18.5 QXBL22
Power KW 0.75 1.5 2.2 3.0 4.0 5.5 7.5 11 15 18.5 22
Current A 2.4 4 5.8 7.0 8.8 12 17 24 32 39 45
Voltage V 380/400/415
Speed rpm 1470
Frequency Hz 50/60
Insulation garde F
Immersion depth m 3 4 4 4.5 5 5.5 6 7 7 7 7
Air input m3/h 10 22 35 50 75 85 100 160 200 260 320
Aeration area  kgO2/h 0.37 1 1.8 2.75 3.8 5.3 8.2 13 17 19 24

Performance parameters of QXB(L



Type QSB0.75 QSB1.5 QSB2.2 QSB3 QSB4 QSB5.5 QSB7.5
Power(kw) 0.75 1.5 2.2 3 4 5.5 7.5
Current(A) 2.3 3.7 5.6 6.8 8.8 11.3 15
Votage(V) 380/400/415
Speed(r/min) 2900 1470
Fre.(Hz) 50/60
Insulation class F
Max. water depth 3 3.5 4 4 4.5 5 5.5
Air emission volumn(m3/h) 10 22 35 50 75 85 100
Aeration area (m2) 3X2 4X3.5 5X4 6X4.5 7X5 7.5X6.5 9X7

Performance parameters of QSB
