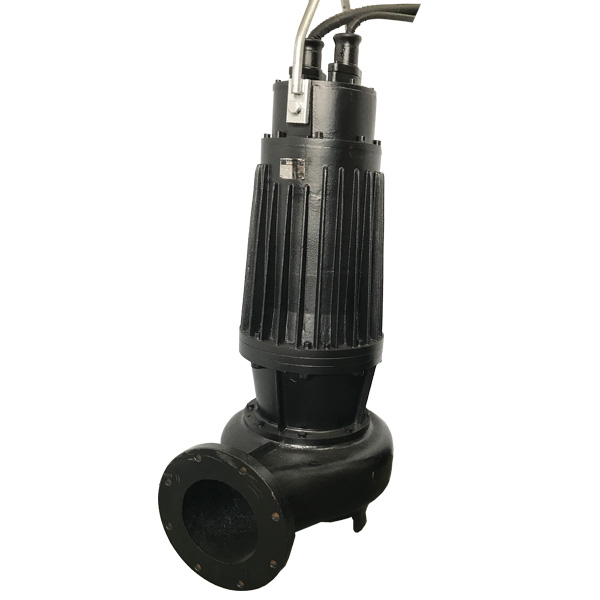

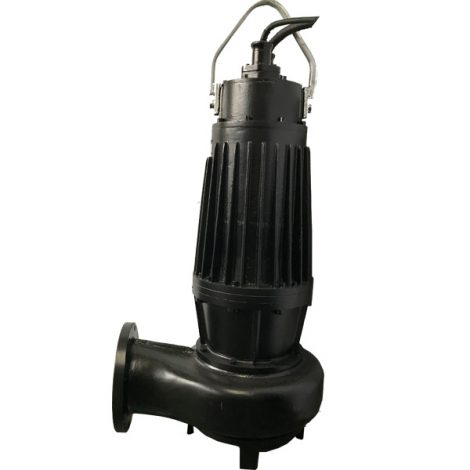

WQ Series Sewage Pump

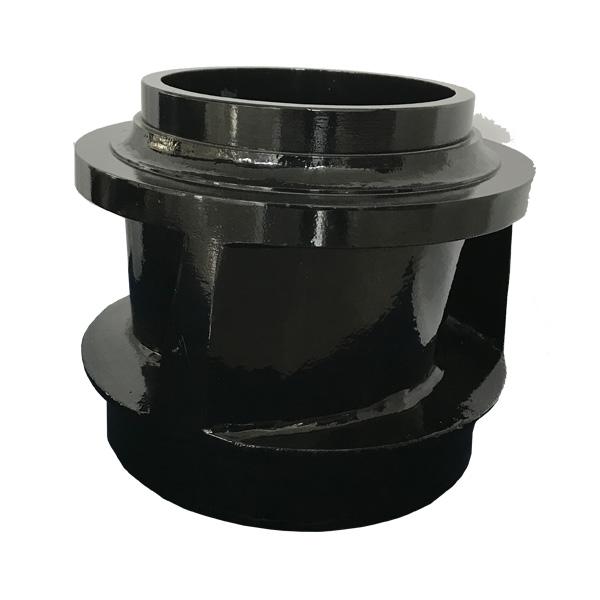

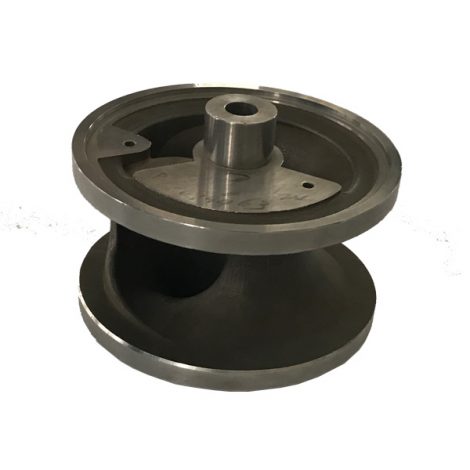

Other Names: Closed Large-Channel Impeller

WQ series sewage pump—with closed type large channel impeller, large dia. solid particles can be discharged smoothly. Which can be used in municipal, industrial and domestic sewage water

WQ series sewage pump

WQ Series Sewage Pump

Item .  Model Capacity  Head  Power Discharge Speed  Max solids Passed  Weight
No. (m3/h) (m) (Kw) (mm) (r/min) (mm) (kg )
1 WQ10-10-1 10 10 1 50 2900 25 29
2 WQ15-7-1 15 17 1 50 2900 25 29
3 WQ10-15-1.5 10 15 1.5 50 2900 25 32
4 WQ25-8-1.5 25 8 1.5 50 2900 25 32
5 WQ15-20-2.2 15 20 2.2 50 2900 25 45
6 WQ25-14-2.2 25 14 2.2 50 2900 25 45
7 WQ40-10-2.2 40 10 2.2 50 2900 25 45
8 WQ20-22-3 20 22 3 50 2900 25 45
9 WQ30-16-3 30 16 3 50 2900 25 45
10 WQ40-12-3 40 12 3 50 2900 25 45
11 WQ100-5-3 100 5 3 100 2900 50 45
12 WQ20-25-4 20 25 4 80 2900 40 75
13 WQ30-18-4 30 18 4 80 2900 40 75
14 WQ40-15-4 40 15 4 80 2900 40 75
15 WQ60-13-4 60 13 4 80 2900 40 75
16 WQ140-5-4 140 5 4 150 2900 70 100
17 WQ160-4-4 160 4 4 150 2900 70 100
18 WQ180-3-4 180 3 4 150 2900 70 100
19 WQ25-30-5.5 25 30 5.5 50 1470 25 175
20 WQ30-21-5.5 30 21 5.5 50 1470 25 175
21 WQ65-15-5.5 65 15 5.5 100 1470 50 175
22 WQ100-8-5.5 100 8 5.5 150 1470 70 175
23 WQ200-5-5.5 200 5 5.5 200 1470 100 190
24 WQ20-40-7.5 20 40 7.5 80 2900 40 200
25 WQ45-30-7.5 45 30 7.5 100 1470 50 200
26 WQ70-20-7.5 70 20 7.5 100 1470 50 200
27 WQ100-13-7.5 100 13 7.5 100 1470 50 200
28 WQ150-8-7.5 150 8 7.5 150 1470 70 200
29 WQ200-8-7.5 200 8 7.5 200 1470 100 220
30 WQ45-32-11 45 32 11 100 1470 50 280
31 WQ70-22-11 70 22 11 100 1470 50 280
32 WQ150-10-11 150 10 11 150 1470 70 280
33 WQ300-7-11 300 7 11 200 1470 100 280
34 WQ500-5-11 500 5 11 250 1470 100 300
35 WQ70-32-15 70 32 15 100 1470 50 280
36 WQ100-22-15 100 22 15 100 1470 50 280
37 WQ150-17-15 150 17 15 150 1470 70 280
38 WQ250-13-15 250 13 15 150 1470 70 280
39 WQ400-9-15 400 9 15 200 1470 70 280
40 WQ550-6-15 550 6 15 250 1470 100 320
41 WQ80-34-18.5 80 34 18.5 100 1470 50 450
42 WQ100-30-18.5 100 30 18.5 100 1470 50 450
43 WQ150-18-18.5 150 18 18.5 150 1470 70 450
44 WQ300-11-18.5 300 11 18.5 150 1470 70 450
45 WQ400-10-18.5 400 10 18.5 200 1470 100 450
46 WQ700-6-18.5 700 6 18.5 300 740 150 750
47 WQ80-38-22 80 38 22 100 1470 50 500
48 WQ100-35-22 100 35 22 100 1470 50 500
49 WQ150-22-22 150 22 22 150 1470 70 500
50 WQ250-17-22 250 17 22 150 1470 70 500
51 WQ400-13-22 400 13 22 200 1470 100 500
52 WQ600-7-22 600 7 22 200 1470 100 500
53 WQ150-30-30 150 30 30 150 1470 70 800
54 WQ250-22-30 250 22 30 150 980 70 800
55 WQ300-18-30 300 18 30 150 980 70 800
56 WQ600-12-30 600 12 30 250 1470 100 800
57 WQ1100-6-30 1100 6 30 300 980 150 800
58 WQ150-35-37 150 35 37 150 1470 70 800
59 WQ250-26-37 250 26 37 150 1470 70 800
60 WQ300-22-37 300 22 37 150 1470 70 800
61 WQ400-20-37 400 20 37 200 1470 70 800
62 WQ600-15-37 600 15 37 250 1470 100 800
63 WQ1100-8.5-37 1100 8.5 37 300 980 150 800
64 WQ250-30-45 250 30 45 150 1470 70 800
65 WQ300-27-45 300 27 45 150 1470 70 800
66 WQ400-26-45 400 26 45 200 1470 70 800
67 WQ600-20-45 600 20 45 250 1470 100 800
68 WQ1000-9.5-45 1000 9.5 45 300 1470 150 800
69 WQ1800-5-45 1800 5 45 400 740 125 1500
