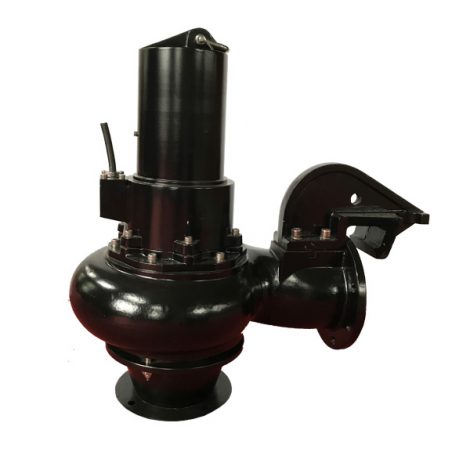

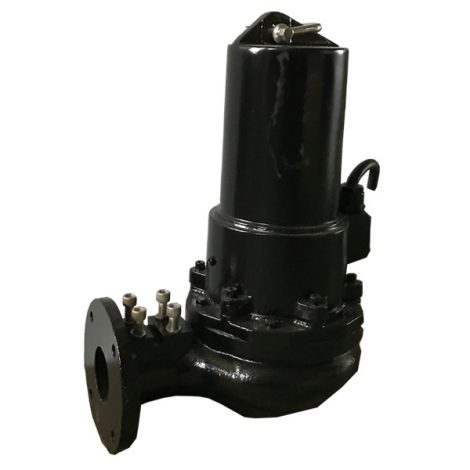

Screw Impeller Pump

Other Names: Submersible Screw Pump / Vertical screw pump

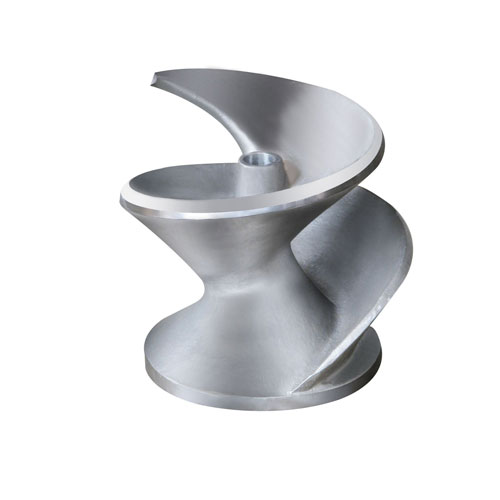

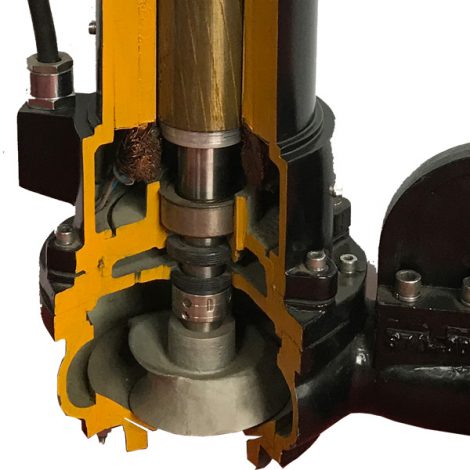

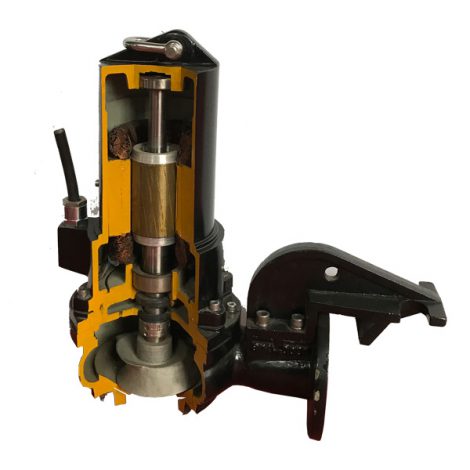

The screw centrifugal pump has extraordinary Non-clog characteristics. The screw centrifugal design of the impeller produces high efficiency, clog-free operation, which allows it to handle large solids and long fibrous material with ease. Conventional centrifugal, so-called non-clog pump tend to clog because they catch fibrous materials and solids in the impeller vane edge as the materials enters the suction. The pump with its unique screw centrifugal impeller eliminates these problems. The impeller screws itself into soft solids so that “packing” will never occur in the suction cover and the back of the impeller are designed with spiral grooves that prevent the lodging of fibers.

An additional benefit that can be derived from the screw centrifugal design is “ gentle pumping”, this feature gives great advantages for the following applications:

Pumping of activated sludge or fluffy flocs :physical state will be maintained, flocs will not be torn to shreds.

Fibers in suspension: will not be “twisted or winded”. Delicate items such as tomatoes, living fish etc… will not be damaged.

Oil in emulsion: will be maintained in a specific physical state.

Item .	Model	Capacity	Head	Power	Discharge	Speed	Weight	Max solids Passed	Flange
No.	Model	(m3/h)	(m)	(Kw)	(mm)	(r/min)	(kg )	(mm)	(mm)
1	SCI10610D2	8--25	14--5.5	1	56	2900	28	33	65
2	SCI10610Z4	30-45	3.5--2.5	1	100	1490	40	54	100
3	SCI10615D2	10--30	15--6	1.5	56	2900	28	36	65
4	SCI10615Z4	35-60	5--3	1.5	100	1490	45	59	100
5	SCI13522D2	14--40	19--8	2.2	66	2900	55	39	80
6	SCI13522Z4	45-100	8--3.5	2.2	120	1490	50	63	150
7	SCI13530D2	15--50	20--9	3	66	2900	56	41	80
8	SCI13530Z4	60-125	8.5--4	3	120	1490	55	67	150
9	SCI15040D2	20-60	25--9.5	4	71	2900	78	43.5	80
10	SCI15040Z4	65-150	9--4.5	4	129	1490	80	71	150
11	SCI17055D2	25-75	28--10	5.5	80	2900	100	46	80
12	SCI17055Z4	80-170	9.5--5	5.5	150	1490	160	76	150
13	SCI17055H4	120-250	7.5--3.5	5.5	170	1490	150	115	200
14	SCI17075D2	35-90	30--13	7.5	80	2900	105	49	80
15	SCI17075Z4	90-200	12.5-6	7.5	150	1490	170	81	150
16	SCI17075H4	140-300	8.5--4	7.5	170	1490	160	123	200
17	SCI20011D2	40--110	35--15.5	11	92	2900	165	53	100
18	SCI20011Z4	130-260	15--7	11	175	1490	280	87	200
19	SCI20011H4	190-400	10--4.5	11	187	1490	270	132	200
20	SCI20015D2	50-140	40--17.5	15	92	2900	170	57	100
21	SCI20015Z4	150-300	17--8	15	175	1490	300	93	200
22	SCI20015H4	240-500	11.5-5	15	200	1490	290	140	200
23	SCI23018D2	55-160	45--19.5	18.5	100	2900	200	59	100
24	SCI23018Z4	170-350	19--9	18.5	185	1490	360	97	200
25	SCI23018H4	280-600	13-5.5	18.5	210	1490	350	147	200
26	SCI23022D2	60-170	50--21.5	22	100	2900	220	61	100
27	SCI23022Z4	190-400	21--9.5	22	185	1490	380	100	200
28	SCI23022H4	300-650	14--6	22	217	1490	370	152	200
29	SCI25030D2	70-200	55--24	30	111	2900	240	65	150
30	SCI25030Z4	230-500	23--11	30	205	1490	550	107	200
31	SCI25030H4	370-800	15.5--6	30	240	1490	540	162	250
32	SCI25037D2	80-230	60--25	37	111	2900	250	68	150
33	SCI25037Z4	250-550	26--12	37	205	1490	580	111	200
34	SCI25037H4	400-900	17--7	37	240	1490	570	169	250
35	SCI28045D2	100-280	65--28	45	118	2900	300	71	200
36	SCI28045Z4	300-600	27---13	45	215	1490	640	116	250
37	SCI28045H4	450-1000	18.5--8	45	250	1490	630	176	250

SCI series screw impeller pump
